COE Coil Reels

COIL REELS & DECOILERS

COE Press Equipment offers a comprehensive line of coil reels, also known as decoilers or uncoilers, designed to meet diverse manufacturing needs. These machines are available in both motorized and pull-off configurations, as well as single-ended or double-ended designs for enhanced production efficiency. They can also be stationary or traveling configurations. COE coil reels are built to handle a wide range of material widths and coil weights, with capacities up to 60,000 lbs.

KEY FEATURES AND SPECIFICATIONS

  • Capacity: 4,000 lbs. to 60,000 lbs.
  • Coil Width: From 12" to 84"
  • Yield Strength: 10 – 300 KSI
  • Coil ID: 16" – 24.75"
  • Coil OD: Up to 72"
  • Speed: Up to 200 FPM
  • Materials Handled: Aluminum, AHSS, CR Steel, HR Steel, Galvanized, Stainless, Pre-painted

Features and options may vary. Contact COE for application-specific limits and details.

COE Coil Reel 2
COE Double Ended Coil Reel
COE Coil Reel With Coil Car
COE Coil Reel Colors Side by Side
STANDARD FEATURES

COE coil reels incorporate robust features for reliable performance:

  • Heavy-duty welded steel construction
  • "Bearing Tube" support of mandrel
  • Manual handcrank expansion with snapout handle
  • Hydraulic mandrel expansion feature (optional on some pull-off models)
  • One set of three narrow coil keepers
  • Quick release type narrow coil keepers (standard on all weights)
  • Three-pad mandrel construction
  • Coil width scales on mandrel pads
  • Heavy-duty link bar type expansion (10,000# only)
  • Heavy-duty wedge type expansion (15,000# and above)
  • Air disc drag brake to prevent coil over run
  • Hydraulic mandrel indexing (double-end models)
  • 300-degree full radius mandrel pads
  • Standard 0-17 RPM mandrel rotation speed (80 FPM)
  • Digital AC variable speed drive control
  • Potentiometer control variable speed loop arm
  • 230/460 Volt AC 3 phase incoming power
  • Standard electrical safety disconnect
  • AC variable speed drive (2 HP to 20 HP, depending on capacity and speed)
OPTIONAL EQUIPMENT

To further enhance functionality and adaptability, COE offers a range of optional equipment for coil reels:

  • Traveling coil cars
  • Coil lift stations
  • Traveling up-enders
  • Coil storage racks and turn-stiles
  • Coil hold down arms with motorized end wheels
  • Coil keepers
  • Power coil guide
  • Automatic back-tension systems
  • Full O.D. backplate for coil diameter
  • Extra set of three (3) narrow coil keepers
  • Provisions for 72" coil diameter
  • Coil width scales on mandrel pads
  • 300-degree full radius mandrel pads
  • Coil adapter pads for larger coil IDs
  • Air operated coil hold down arm
  • Air operated hold down with motorized endwheel
  • Heavy duty coil clockspring guard
  • Remote jog pendant for material threading
  • Ultra sonic variable speed loop control
  • Hydraulic threading drive (pull-off models)
  • Hydraulic expansion feature
  • Hydraulic traveling coil car
  • Fail safe drag brake mechanism
  • Multiple stage air disc drag brakes
  • Power mandrel indexing - double-end models
  • Larger HP packages for higher line speeds

TYPES OF COIL REELS

Motorized (Powered) Coil Reels: These reels advance coils into a loop, either a conventional loop or a “paddle loop,” which forms around the coil’s outer diameter to conserve floor space. Motorized reels are ideal for continuous operation and tight loop control, feeding material to a straightener or feeder.

Pull-Off Coil Reels: Used in a conventional feed line setup, pull-off reels are typically paired with a powered straightener that pulls the material off the reel. They can feature powered threading to help advance the coil's leading edge. A correctly adjusted drag brake maintains a tight line of steel between the pull-off reel and the powered straightener, preventing jerking and material damage.

The Science Behind the Solution Coil Reels
AI Generated Podcast
7:28

THE SCIENCE BEHIND THE SOLUTION®
COIL REELS

A coil reel is a crucial piece of equipment used to hold and dispense coiled steel in a feed line. It is a modern alternative to the older coil cradle, offering greater safety and efficiency for handling various types of materials. There are two main types: motorized and pull-off. Motorized reels use a drive to advance material into a loop, while pull-off reels rely on a powered straightener to pull the material off the reel. Recent advancements in reel design, such as fail-safe brakes, automatic drag compensation, and hydraulic mandrel expansion, have improved their performance, making them more efficient and reliable for modern manufacturing operations.

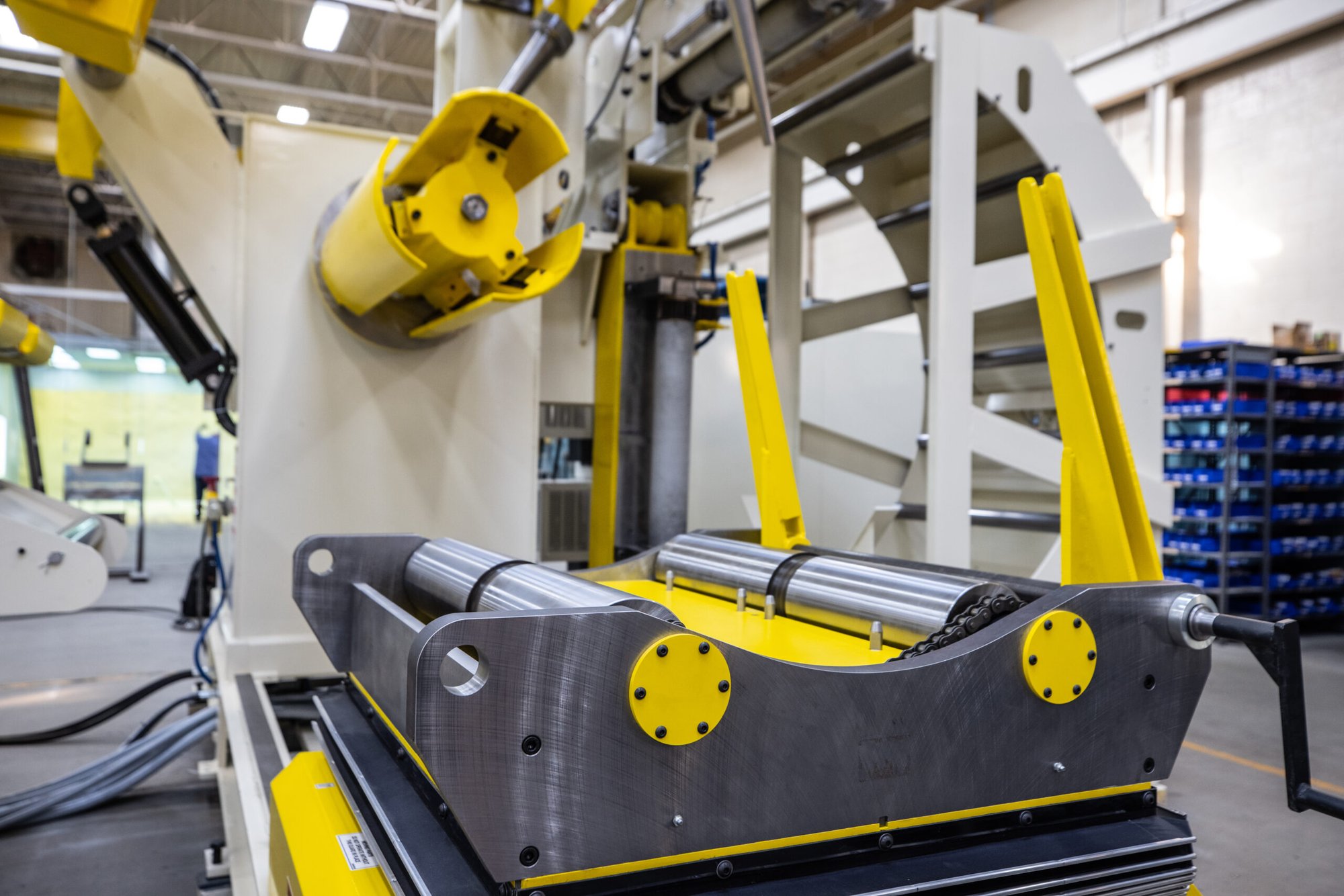

COE Coil Car on Compact Line
AI Generated Podcast
4:16

WHAT IS A COIL CAR?

A coil car is a specialized piece of equipment designed to transport, stage, and position coiled steel in manufacturing environments. It enhances safety and efficiency by reducing the need for manual handling and minimizing reliance on overhead cranes. Operating on two axes—horizontal (X-axis) and vertical (Y-axis)—a coil car allows precise alignment of coils with processing equipment. Key features like rotating V nests, anti-tip arms, and coil risers help secure coils, prevent tipping, and accommodate partial or smaller coils with ease.

These features make coil cars an essential component for facilities handling large volumes of coiled material, such as in automotive or metal fabrication industries. By improving production speed and reducing workplace risks, coil cars streamline the coil handling process and support consistent, reliable operations.

MORE COE SOLUTIONS

5-4-3 WARRANTY

Our standard modular designs reduce components and simplify maintenance—delivering greater reliability and uptime. That’s why every new COE coil feed system comes with our 5-4-3 Warranty on materials and workmanship, plus 24/7 technical support to minimize downtime and protect your investment.

5 YEAR
Limited coverage on components manufactured by COE.

4 YEAR
Limited coverage on mechanical components installed by COE.

3 YEAR
Coverage on the complete system.
