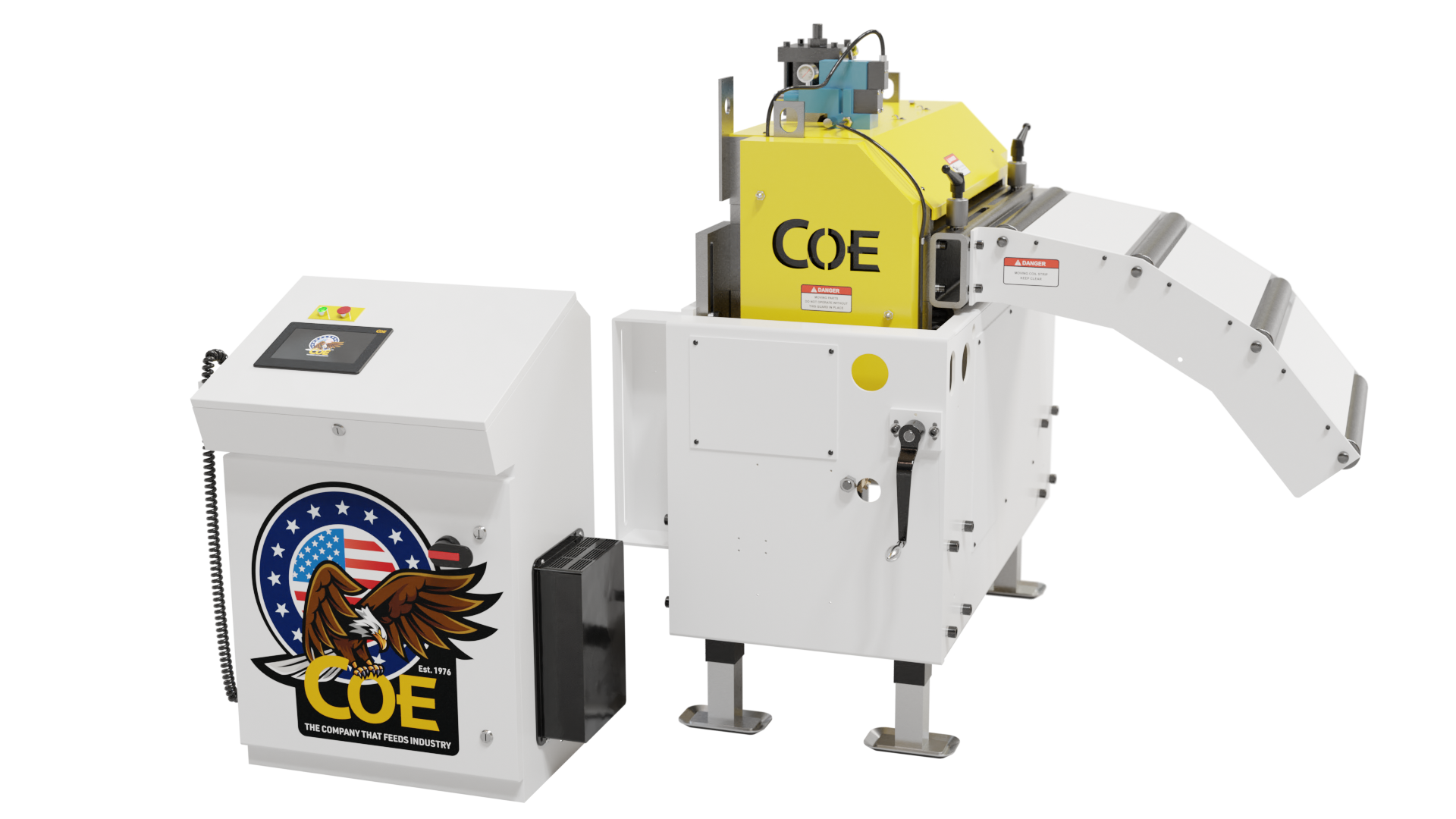

Feeder - CPRF-424 - Facing Right Front View-2

SERVOMASTER™ SERVO FEEDS

COE Press Equipment offers a comprehensive line of servo feed systems that combine speed, precision, and durability to meet the needs of modern stamping operations. Our systems are engineered using proprietary formulas and tested to exceed performance expectations based on real-world application variables.

KEY FEATURES AND SPECIFICATIONS

  • Models: 1–8
  • Coil Width: 6" – 78"
  • Material Thickness: .010" – .725"
  • Yield Strength: 10 – 300 KSI
  • Speeds: Up to 200 SPM
  • Peak Torque: 1800 lbs
  • Materials: Aluminum, AHSS, CR Steel, HR Steel, Galvanized, Stainless, Pre-painted

Features and options may vary. Contact COE for application-specific limits and details.

COE ServoMaster Feed
COE ServoMaster™ Sonic Series
COE Compact Pull-Through Straightener Feed Combo
SERVOMASTER SONIC SERIES NEW

The ServoMaster™ Sonic is engineered for high-speed, high-precision feeding, making it the ultimate solution for demanding coil processing applications. Featuring advanced Servo Piloting technology, it delivers exact control over pilot timing and location while maintaining ideal pressure for delicate, light-gauge materials.

At its core is a Direct Drive motor that eliminates mechanical backlash, allowing for pinpoint accuracy in feed length and significantly reduced acceleration and deceleration times. The result is smoother operation, faster cycle times, and unmatched consistency—making the ServoMaster Sonic Feed the perfect blend of speed, control, and reliability.

Features & Benefits

  • Engineered for ultra-high-speed, high-precision applications
  • Advanced Servo Piloting for exact pilot timing and control
  • Direct Drive motor eliminates backlash
  • Reduced acceleration and deceleration times
  • Maintains ideal pressure for light-gauge materials
  • Enables faster cycle times and smooth operation
  • Pinpoint feed length accuracy and consistent performance

ServoMaster Touch™ Controller

  • Advanced interface tailored for high-speed performance
  • Precision pilot programming and diagnostics
  • Supports on-the-fly adjustments
  • Enhanced synchronization for delicate materials
  • Custom automation compatibility
SERVOMASTER SERIES 1

Application: High-speed stamping, light-gauge material

Feed Roll Diameter: 2.25"

Material Thickness: .010" – .187"

Coil Width: 6" – 30"

Speed: Up to 392 FPM

Drive Ratio: 3.0:1 (optional 3.7:1)

Features & Benefits

  • AC brushless servo motor
  • Low inertia, high torque drive system
  • Kevlar belt and low inertia sheave drivetrain
  • Precision cluster gear driven upper feed roll
  • Pivoting yoke maintains gear mesh
  • Single air cylinder with stroke adjustment
  • Quick-release vertical edge guides
  • 4-roll catenary section
  • Press mount bracket with ±3" adjustment
  • Pre-wired cable set in sealtite conduit
  • Ergonomic desk-type slant-top enclosure

ServoMaster Touch™ Controller

  • 5.7" VGA color touchscreen
  • Ethernet or serial communications to press
  • “Feed Advisor” performance optimization
  • English/Spanish, inch/metric capability
  • On-the-fly feed length micro-adjustments
  • Optional servo feed automation functions
SERVOMASTER SERIES 2

Application: Moderate-gauge stamping, higher speed requirements

Feed Roll Diameter: 2.63"

Material Thickness: .010" – .210"

Coil Width: 6" – 30"

Speed: Up to 580 FPM

Drive Ratio: 2.4:1 (optional 2.9:1)

Features & Benefits

  • AC brushless servo motor
  • Low inertia, high torque drive system
  • Kevlar belt and low inertia sheave drivetrain
  • Precision cluster gear driven upper feed roll
  • Pivoting yoke maintains gear mesh
  • Single air cylinder with stroke adjustment
  • Quick-release vertical edge guides
  • 4-roll catenary section
  • Press mount bracket with ±3" adjustment
  • Pre-wired cable set in sealtite conduit
  • Ergonomic desk-type slant-top enclosure

ServoMaster Touch™ Controller

  • 5.7" VGA color touchscreen
  • Ethernet or serial communications to press
  • “Feed Advisor” performance optimization
  • English/Spanish, inch/metric capability
  • On-the-fly feed length micro-adjustments
  • Optional servo feed automation functions
SERVOMASTER SERIES 3

Application: Medium and heavy-gauge stamping applications

Feed Roll Diameter: 3.00"

Material Thickness: .010" – .250"

Coil Width: 12" – 42"

Speed: Up to 367 FPM

Drive Ratio: 3:2.1 (optional 4.0:1)

Features & Benefits

  • Heavy-duty feed head with 3.00" diameter rolls
  • Precision cluster gear drive
  • Rugged frame for medium to heavy gauge material
  • Enhanced support for wider coil widths
  • Single air cylinder with pilot release stroke adjustment
  • 4-roll catenary support
  • Quick-release edge guide assembly
  • Adjustable press mount brackets
  • Sealtite conduit with prewired cable harness
  • Modular frame allows configuration flexibility

ServoMaster Touch™ Controller

  • 5.7" VGA color touchscreen
  • Ethernet or serial communications to press
  • “Feed Advisor” setup optimization
  • English/Spanish language selection
  • Inch/metric conversion support
  • Real-time on-the-fly feed adjustment
SERVOMASTER SERIES 4

Application: High-speed, high-precision stamping with thicker gauges

Feed Roll Diameter: 4.00"

Material Thickness: .010" – .310"

Coil Width: 12" – 42"

Speed: Up to 396 FPM

Drive Ratio: 2.6:1 (optional 3.3:1)

Features & Benefits

  • Reinforced frame and 4.00" diameter rolls
  • Dual air cylinders with pilot stroke adjustment
  • Enhanced journal and bearing diameter for durability
  • Quick-adjust edge guide system
  • Heavy-duty press mount bracket with ±5" adjustment
  • Kevlar belt drivetrain and precision gear drive
  • Sealtite conduit and prewired harness
  • Full 4-roll catenary support system

ServoMaster Touch™ Controller

  • 5.7" VGA color touchscreen
  • Serial or Ethernet communication support
  • Programmable feed optimization with Feed Advisor
  • Supports English/Spanish and inch/metric inputs
  • Dynamic length adjustment while in motion
  • Optional automation integration support
HEAVY DUTY SERVO ROLL FEEDS

Application: Heavy gauge, high-tensile materials and wide coil stock

Roll Diameter: 5.0" – 8.0"

Material Thickness: .030" – .750"

Coil Width: 18" – 78"

Speed: Up to 409 FPM

Features & Benefits

  • Single point roll lift adjustment
  • Motorized passline height adjustment
  • Servo-piloting: 10x faster response, fully programmable
  • Optimized pilot release and feed windows
  • Kevlar belt and low inertia drive
  • Heavy-duty reinforced frame
  • Prewired cable and overhead cable routing (optional)

ServoMaster Touch™ Controller

  • 5.7" VGA color touchscreen
  • Ethernet or serial press communication
  • Feed Advisor optimization feature
  • Supports English/Spanish and inch/metric inputs
  • On-the-fly length adjustments
  • Optional servo automation control
TAILOUT FEEDS

Application: Blanking and progressive die operations, transfer press retrofits

Configuration: Retractable feeders positioned close to the die during operation

Styles: Coil-fed, magnetic conveyor, and overhead roll

Features & Benefits

  • Improves productivity and safety
  • Minimizes scrap from each coil
  • Feed rolls telescope over bolster area
  • Set up for continuous running at press speed
  • Available as new systems or retrofit upgrades
  • Fully retracts during die changes
ZIG-ZAG FEEDS

Application: Scrap reduction in blanking operations with programmable lateral indexing

Feed Roll Diameter: Same as corresponding Series 1–4 models

Material Thickness: .010" – .725"

Coil Width: 6" – 78"

Speed: Up to 200 SPM

Features & Benefits

  • Servo-piloting: 10x faster than air piloting
  • Completely programmable for precision strip positioning
  • Optimized for high-speed blanking and nesting patterns
  • Reduces waste by allowing strip repositioning between strokes
  • Works in sync with ServoMaster Touch™ Controller
  • Compatible with multiple feed roll models

ServoMaster Touch™ Controller

  • 5.7" VGA color touchscreen
  • Ethernet or serial press communication
  • Supports zig-zag programming and feed cycle logic
  • Feed Advisor functionality for optimal timing
  • Multilingual interface and unit conversions
  • On-the-fly feed length and zig-zag width adjustment
The Science Behind the Solution Servo Feeds
AI Generated Podcast
4:54

THE SCIENCE BEHIND THE SOLUTION®
SERVO FEEDS

COE Press Equipment uses a scientific approach to ensure their servo feeds meet customer needs, focusing on factors that impact performance. They begin by considering the material's width and thickness to determine the necessary pulling power. The presence of a pit, which adds weight to the slack loop, and the length of the die, which increases friction, are also factored into the calculations. By analyzing the required feed length, degrees of feed angle, and strokes per minute (SPM), COE can determine the operational speed. All this data is fed into a proprietary formula to ensure the selected servo feed's motor torque and speed capabilities are well within a safe operating range, guaranteeing reliable and efficient performance that exceeds the customer's requirements.

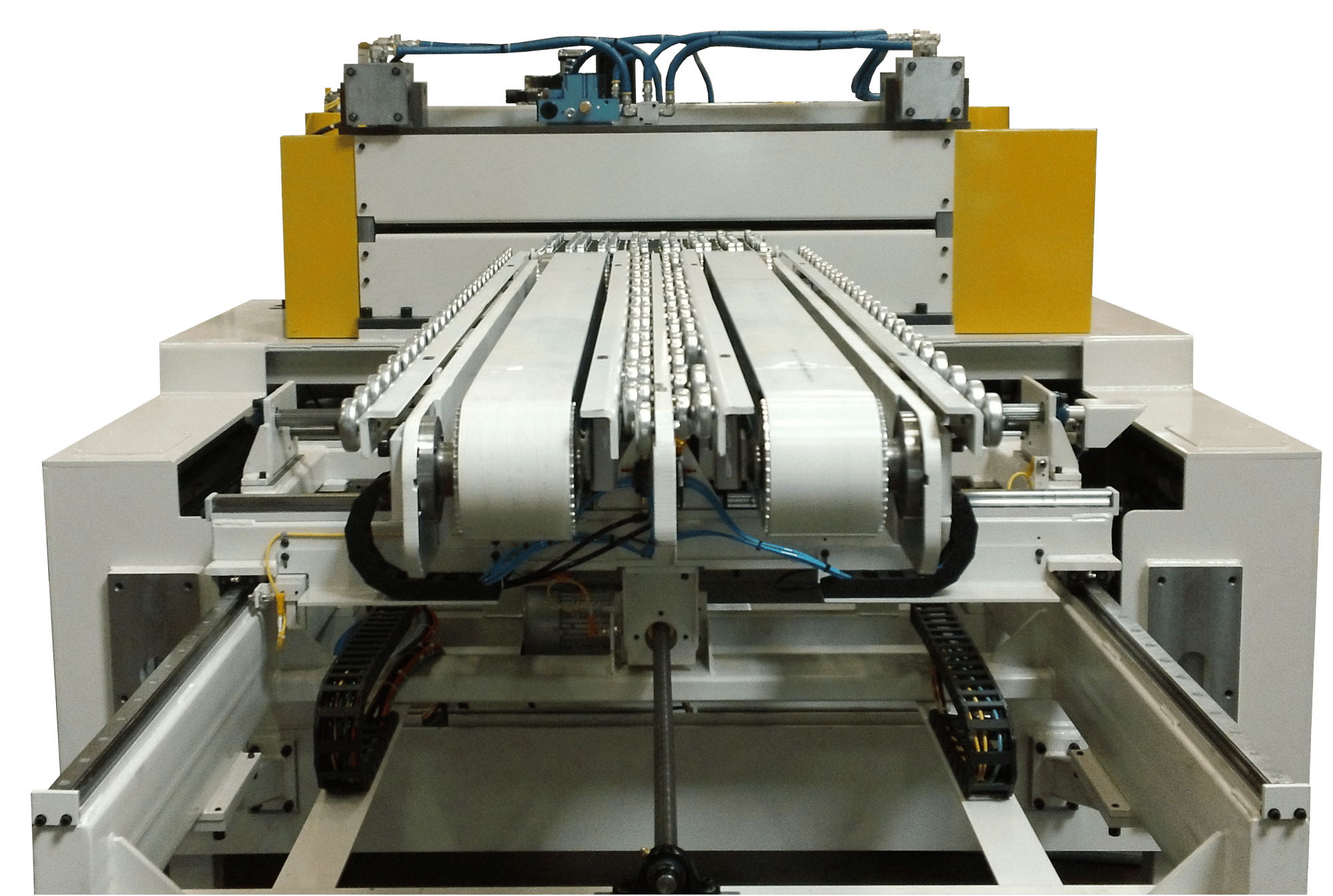

COE Tailout

WHAT IS A TAILOUT FEED?

A Tailout Feed—also known as a micro-feeder or secondary feeder—is a compact, precision feeder designed to handle the end portion, or “tail,” of a coil strip during the stamping process. Its primary role is to ensure material is fully utilized by feeding the remaining coil length into the die, minimizing scrap and improving yield.

Tailout Feeds are typically used in progressive and blanking operations. They retract during die changeover for safety and convenience, and then extend close to the die area during production to continue feeding material. This design eliminates the need to discard the last portion of a coil simply because it’s harder to feed accurately with a standard roll feed.

COE offers several styles of Tailout Feeds:

  • Standard Tailout Coil Feed: Rolls telescope over the bolster to minimize scrap

  • Magnetic Conveyor Style: Uses electro-magnetic conveyors to index coil strips

  • Overhead Roll Style: Positioned at the edge of the bolster, ideal for transfer press retrofits

Tailout Feeds improve material usage, increase operator safety, and help achieve consistent, reliable feeding even at the end of the coil. They are especially valuable in operations where every inch of material counts.

WHAT IS A ZIG ZAG FEED?

A Zig Zag Feed is a specialized servo-driven feeder that moves coil material both forward and side-to-side in a coordinated, programmable pattern. This dual-axis movement enables stampers to nest parts more efficiently within the strip, significantly reducing material waste.

COE’s Zig Zag Servo Feeds are designed for operations like circular blanking, deep draw stampings, and progressive dies where lateral shifting is essential. The feed direction and width of each “zig” and “zag” can be precisely controlled, allowing optimal placement of each part along the coil.

Paired with ServoMaster Touch™ controls, Zig Zag systems offer:

  • Fully programmable feed length and lateral displacement
  • Automatic optimization of stroke timing and feed window
  • Greater material utilization and lower scrap rates
  • Faster part production with repeatable accuracy

Zig Zag Feeds are a smart investment for high-volume manufacturers looking to reduce costs while maintaining tight tolerances and cycle times.

MORE COE SOLUTIONS

5-4-3 WARRANTY

Our standard modular designs reduce components and simplify maintenance—delivering greater reliability and uptime. That’s why every new COE coil feed system comes with our 5-4-3 Warranty on materials and workmanship, plus 24/7 technical support to minimize downtime and protect your investment.

5 YEAR
Limited coverage on components manufactured by COE.

4 YEAR
Limited coverage on mechanical components installed by COE.

3 YEAR
Coverage on the complete system.

5 YEAR  Limited coverage on components manufactured by COE.
4 YEAR Limited coverage on mechanical components installed by COE.
3 YEAR  Coverage on the complete system.
Customer touring the COE assembly shop

A top tier appliance OEM touring COE Press Equipment's Assembly Shop in Sterling Heights, MI

WHY MANUFACTURERS CHOOSE COE

  • Proven Performance: Since 1976, we’ve delivered durable, innovative coil lines that last decade after decade.
  • Engineering-Backed Solutions: Every system is sized and spec’d using COE-developed tools to ensure it performs exactly as needed—no guesswork.
  • Built In-House: Our vertically integrated process gives us full control over quality, customization, and delivery.
  • Customer-First Commitment: We listen, respond, and support—before, during, and long after installation.
